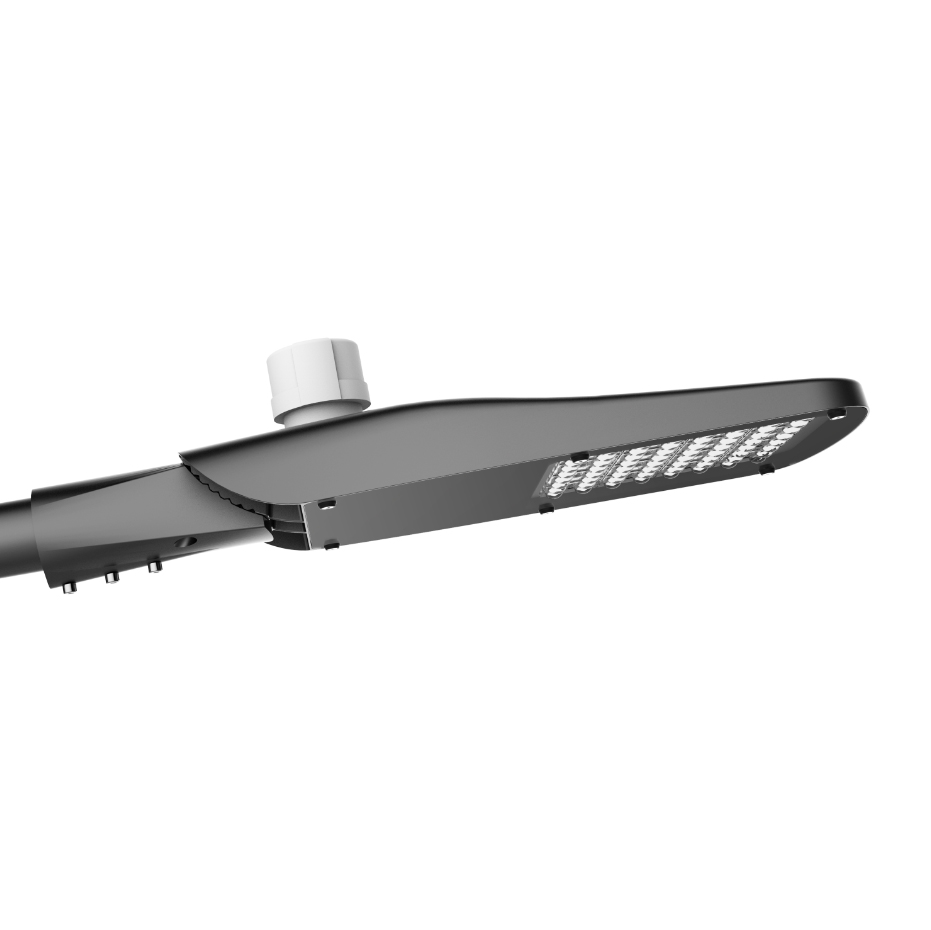

Road lighting 250 watt led street light

Short Description:

High strength aluminum die casting material,surface anit-ageing electrostatic
spray processing,super resistance to corrosion.
Glass cover,high strength impact resistance.
Input Voltage:AC100-240V,50/60Hz,IP66,Ik08
Bracket:60mm
Insulation class Il I two options
Spare parts for choice
10 kv/20kv SPD
0-10v dimming driver
Nema socket

Send email to us

Product Detail

Product Tags

Product Code	JD-1058A	JD-1058B	JD-1058C	JD-1058D	JD-1058E	JD-1058F
lED Current (mA)	1050mA	1050mA	1050mA	1050mA	1050mA	1050mA
LED Quantity	16pcs CREE EXE	24pcs CREE EXE	16pcs CREE EXE	16pcs CREE EXE	16pcs CREE EXE	16pcs CREE EXE
Rate Power	30W	40W	30W	30W	30W	30W
Color Temperature	6500/4000/3000K	6500/4000/3000K	6500/4000/3000K	6500/4000/3000K	6500/4000/3000K	6500/4000/3000K
Luminous Flux	130LM/W	130LM/W	130LM/W	130LM/W	130LM/W	130LM/W
Input Voltage	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Color Temperature	RA75	RA75	RA75	RA75	RA75	RA75
Temperature of working condition	-40℃ - 50℃	-40℃ - 50℃	-40℃ - 50℃	-40℃ - 50℃	-40℃ - 50℃	-40℃ - 50℃
humidity of working condition	20%-90%	20%-90%	20%-90%	20%-90%	20%-90%	20%-90%
LED life time	70000h	70000h	70000h	70000h	70000h	70000h
Protestion Grade	IP66	IP66	IP66	IP66	IP66	IP66
Installation Pipe Dia	Φ60mm	Φ60mm	Φ60mm	Φ60mm	IP66	Φ60mm
Installation Height	3-5m	4-6m	5-7m	7-8m	9-10m	10-11m
Net Weight	4kgs	4.5kgs	5kgs	7kgs	8kgs	9kgs
Gross Weight	5kgs	5.5kgs	6kgs	8kgs	9kgs	10kgs
Product Size	58024690mm	58024690mm	58024690mm	65629090mm	65629090mm	65629090mm
Packing Size	600270120mm	600270120mm	600270120mm	680310120mm	680310120mm	680310120mm
