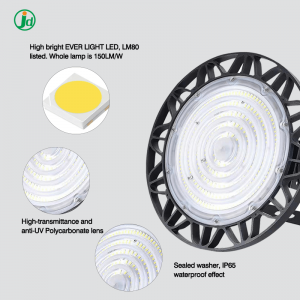

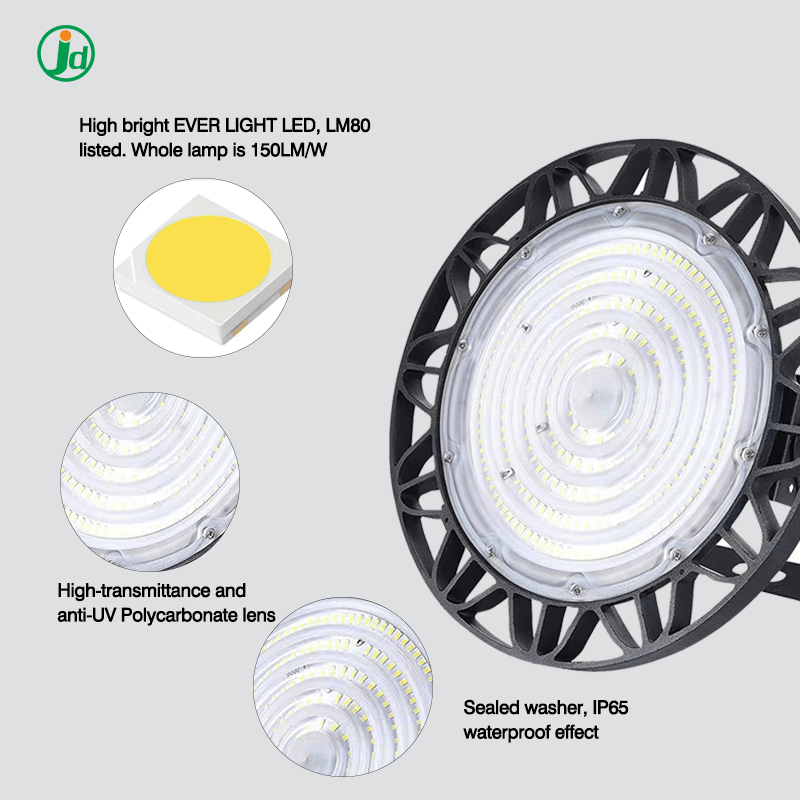

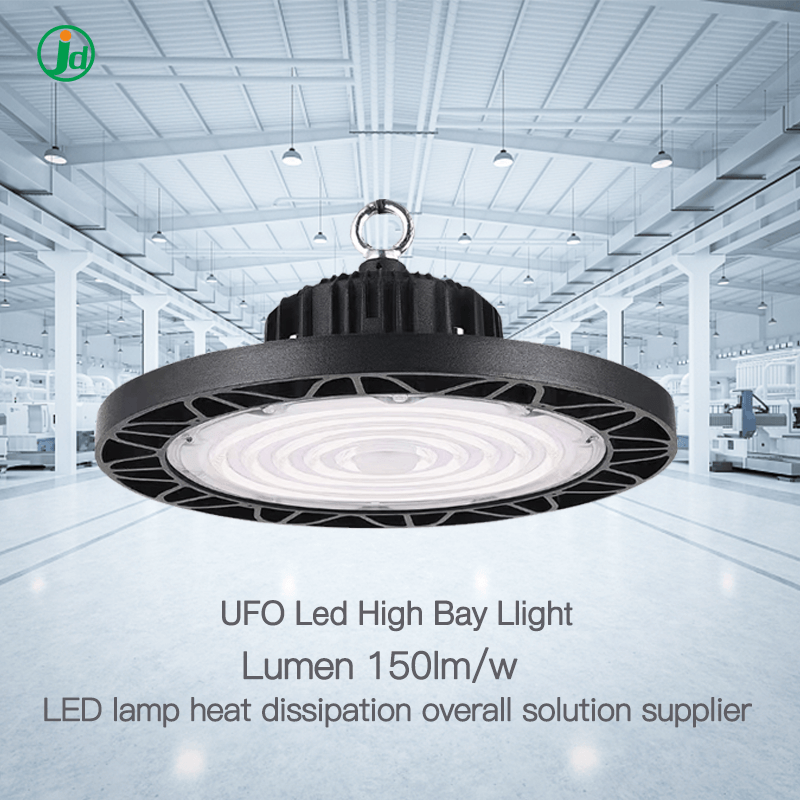

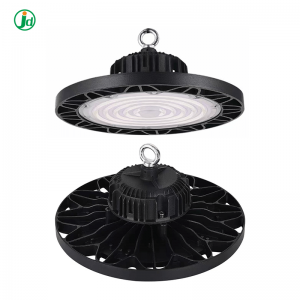

| Product Code |
JD-HB188-100W |
JD-HB188-150W |
JD-HB188-200W |
| LED Quantity |
160PCS 3030(2835) |
240PCS 3030(2835) |
320PCS 3030(2835) |
| Rate Power |
100W |
150W |
200W |
| Color Temperature |
6500/4000/3000k |
6500/4000/3000k |
6500/4000/3000k |
| Luminous Flux |
150LM/W |
150LM/W |
150LM/W |
| PF |
>0.92 |
>0.92 |
>0.92 |
| Input Voltage |
AC120-277V |
AC120-277V |
AC120-277V |
| Frequency Range |
50/60Hz |
50/60Hz |
50/60Hz |
| CRI |
Ra75 |
Ra75 |
Ra75 |
| Temperature of working condition |
(-40℃-50℃) |
(-40℃-50℃) |
(-40℃-50℃) |
| humidity of working condition |
20%-90% |
20%-90% |
20%-90% |
| LED life time |
50000h |
50000h |
50000h |
| Protestion Grade |
IP66 |
IP66 |
IP66 |

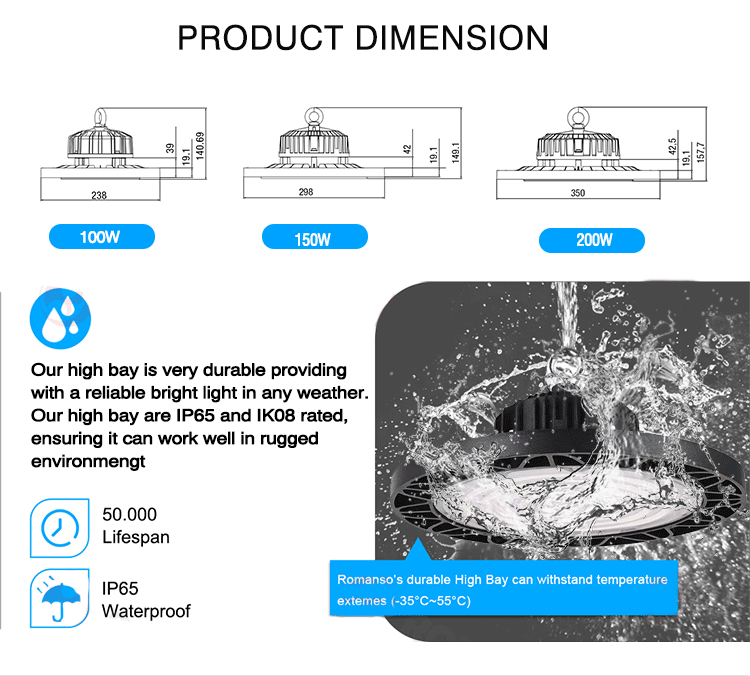

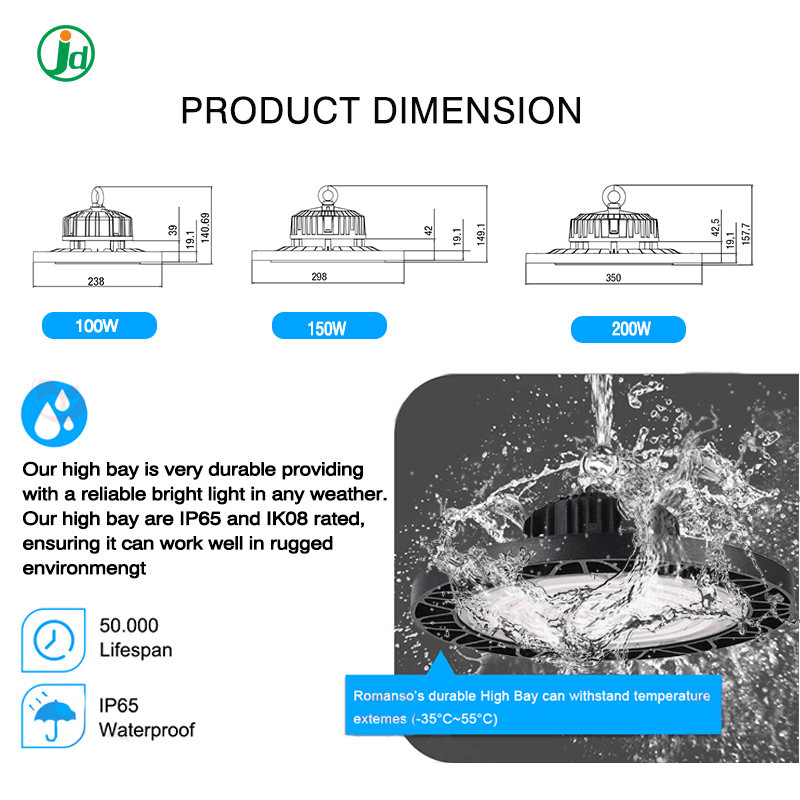

| Product Size |
Φ238*104.7mm |
Φ298*149.1mm |
Φ350*157.7mm |
| Packing Size |
285*285*140mm |
345*345*170mm |
400*400*190mm |
