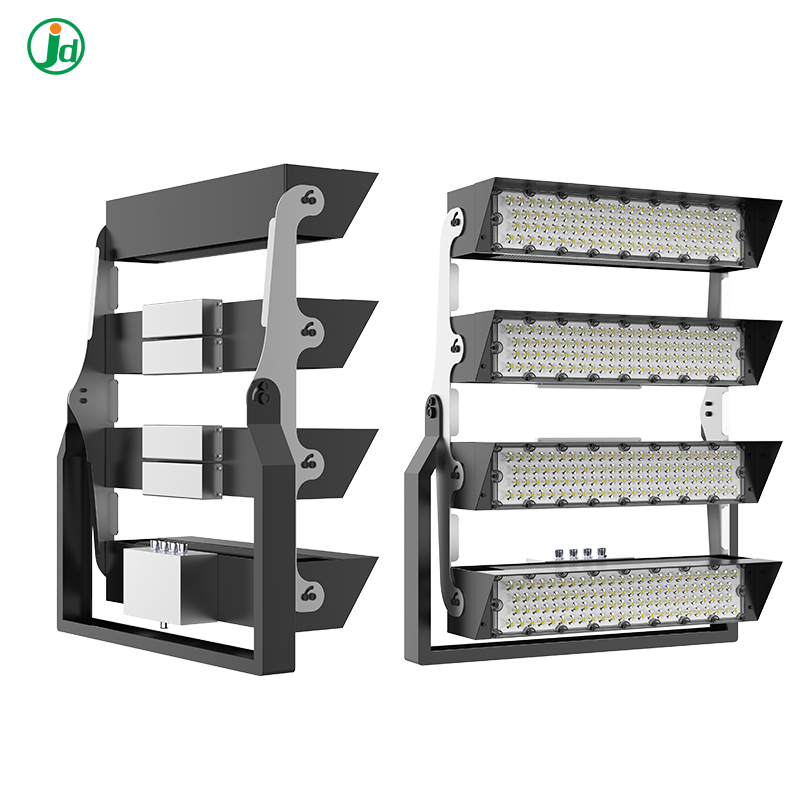

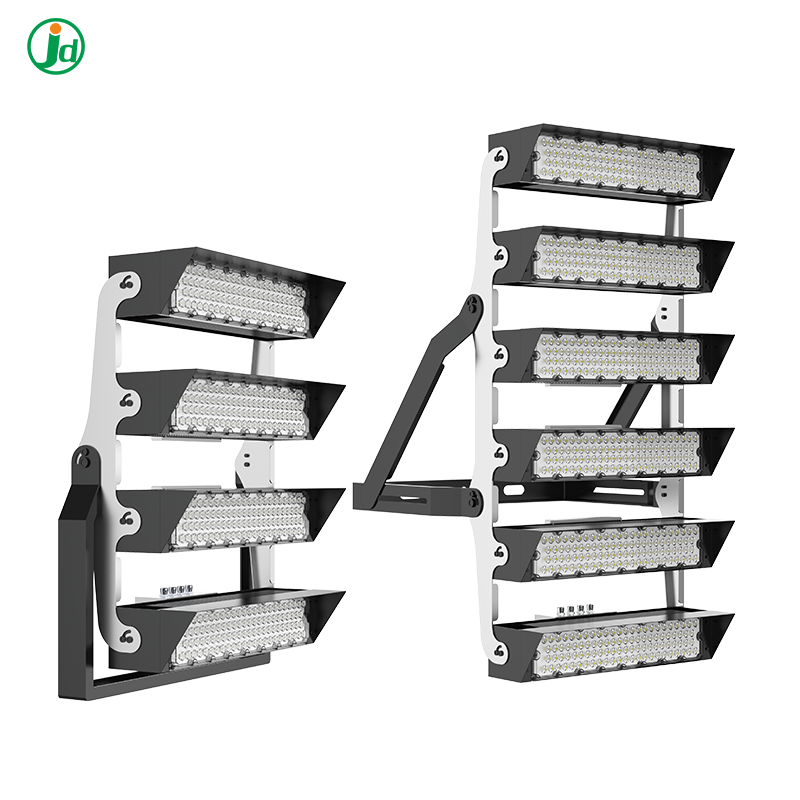

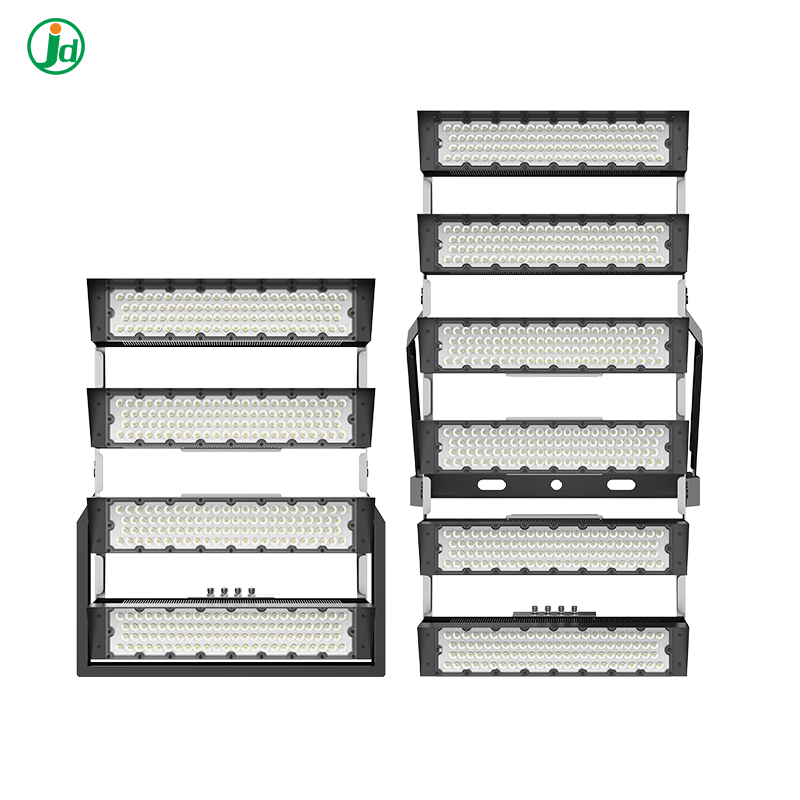

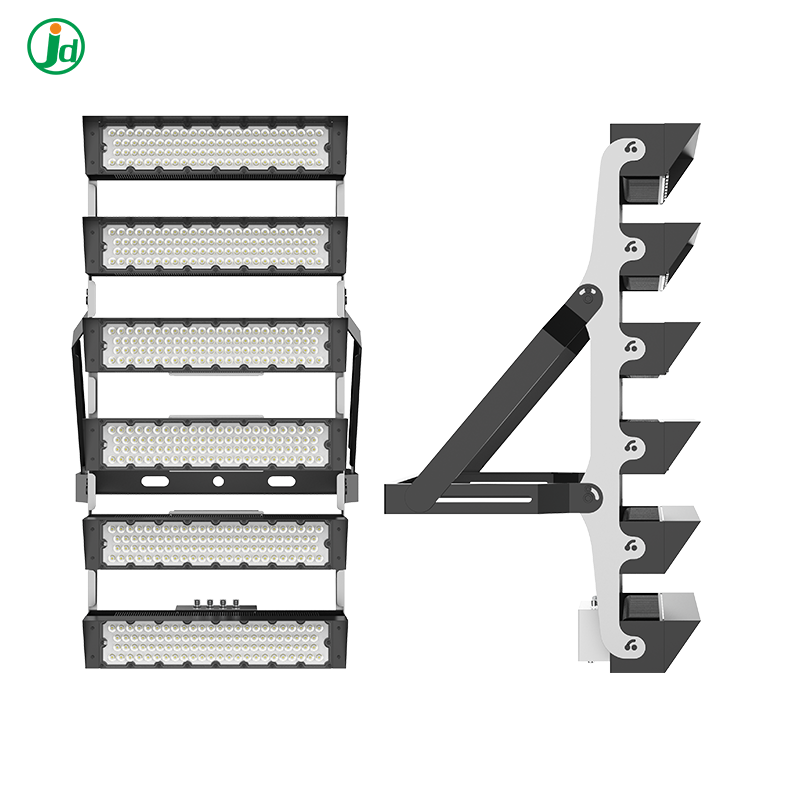

die cast lighting housing

Short Description:

Product Detail

Product Tags

Product Code	JD-F028S	JD-F028A	JD-F028B	JD-F028C	JD-F028D	JD-F028E
LED Quantity	96pcs 5050	192pcs 5050	288pcs 5050	384pcs 5050	480pcs 5050	576pcs 5050
Rate Power	240W	480W	720W	960W	1200W	1440W
lens degree	20,40,60,90,P50	20,40,60,90,P50	20,40,60,90,P50	20,40,60,90,P50	20,40,60,90,P50	20,40,60,90,P50
Color Temperature	6500/4000/3000K	6500/4000/3000K	6500/4000/3000K	6500/4000/3000K	6500/4000/3000K	6500/4000/3000K
Luminous Flux	140lm/W,4000K	140lm/W,4000K	140lm/W,4000K	140lm/W,4000K	140lm/W,4000K	140lm/W,4000K
Input Voltage	AC220-240V	AC220-240V	AC220-240V	AC220-240V	AC220-240V	AC220-240V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Color Temperature	RA75	RA75	RA75	RA75	RA75	RA75
environment temperature	-40℃ - 50℃	-40℃ - 50℃	-40℃ - 50℃	-40℃ - 50℃	-40℃ - 50℃	-40℃ - 50℃
ambient humidity	20%-90%	20%-90%	20%-90%	20%-90%	20%-90%	20%-90%
LED life time	70000h	70000h	70000h	70000h	70000h	70000h
Protestion Grade	IP66	IP66	IP66	IP66	IP66	IP66
Net Weight	5KG	8.5KG	15KG	19KG	23KG	27KG
Gross Weight	7KG	11KG	18KG	22KG	27KG	31KG
Product Size	682210227mm	682210377mm	682210527mm	682210677	682210827	682210977
